PMT® Halo Systems

Adult Halo System w/ Lamb’s Wool Liner

Open Back Halo Ring

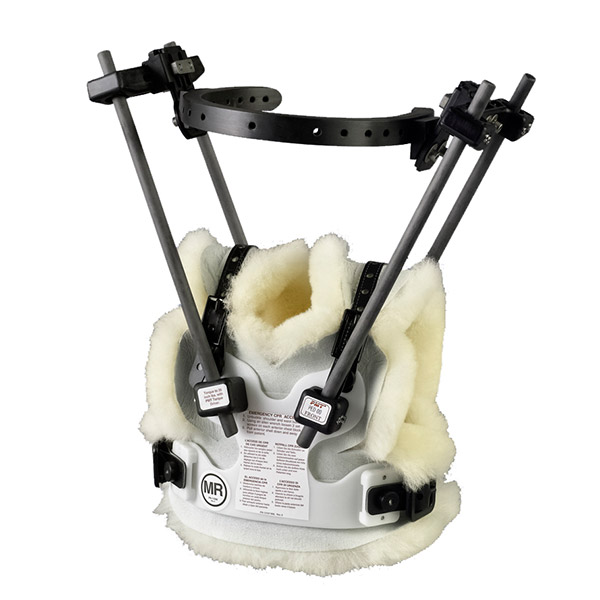

Pediatric Halo system w/ Lamb’s Wool Liner

Adult Halo System w/ Coolmax® Liner

PMT® Halo Systems

The PMT Corporation’s Halo system is the most reliable, easy to use and effective Halo structure available. This Halo system is designed to provide optimal patient comfort and healing. Compared to spinal fusion, Halo fixation allows the body to naturally repair itself at a reduced cost. The PMT Halo head ring utilizes hand wound graphite to ensure product quality and consistency. The proprietary titanium skull pins are specially designed with a parabolic tip to increase the anchoring qualities and reduces the need to retighten the pins as with other designs. The medical grade titanium, TI 6AL-4V ELI, combined with the graphite head ring and support posts are MRI conditional at both 1.5T and 3.0T as well as CT compatible to provide the best imaging characteristics.

PMT Halo System

The gold standard in ambulatory fixation providing optimum support and patient comfort. This open back traction halo system comes complete with graphite composite open back ring, traction bail, head pins, positioning pads, Extended Range (ER) superstructure, vest, liner, and wrenches.

Benefits

  • 1.5/3T MRI Conditional plus CT compatibility
  • Adjustable headblocks can independently adjust 3 ways
  • Displaced buckle for clear lateral x-rays
  • Vest design results in lighter weight, better fit and increased patient compliances
  • Soft, flexible material at shoulder for increased anterior/posterior compression
  • Nylon ball joints for quick and easy fitting

Accessories

  • Traction Tongs carbon graphite (titanium lock-nuts/S-hook) Model #1210
  • Surgical Bed Adaptors (anterior/posterior) Model #1201-65
  • Head Spoon Model #1201-16
  • Skate Assembly (includes head spoon) Model #1201-12

Available Options

Halo Ring

  • Open back
  • Closed back

Vest

  • Standard
  • With air bladder to relieve spinal pressure
  • Kyphotic
  • Patient specific designs
  • Lambs wool liner
  • Acrylic liner
  • Coolmax® liner

Headblocks

  • 4 sizes

Adult Vest Sizes

1233-5 with Coolmax Liner Xyphoid Circumference Waist Circumference Shoulder to Xyphoid Shoulder to Iliac Rest Neck Opening
Small 24”-31”
(61cm-79cm)
26”-32”
(66cm-81cm)
9.5”
(24cm)
15”
(38cm)
6.5”
(16.5cm)
Medium 30”-37”
(76cm-94cm)
29”-35”
(74cm-89cm)
10”
(25cm)
15.5”
(39cm)
6.5”
(16.5cm)
Large 38"-44"
(97cm-112cm)
34"-40"
(86cm-102cm)
12.5"
(32cm)
18"
(46cm)
6.5"
(16.5cm)
X Large 44"-48"
(112cm-122cm)
38"-44"
(97cm-112cm)
15"
(38cm)
21"
(53cm)
8"
(20cm)
XX Large 46"-52"
(117cm-132cm)
44"-50"
(112cm-127cm)
18"
(46cm)
24"
(61cm)
8.25"
(21cm)
1233-5 with Lambswool Liner Xyphoid Circumference Waist Circumference Shoulder to Xyphoid Shoulder to Iliac Rest Neck Opening
Small 26”-33”
(66cm-84cm)
28”-34”
(71cm-86cm)
11.5”
(29cm)
16.5”
(42cm)
6.5”
(16.5cm)
Medium 33”-40”
(84cm-102cm)
32”-38”
(81cm-97cm)
13”
(33cm)
18”
(46cm)
6.5”
(16.5cm)
Large 40"-46"
(102cm-117cm)
36"-42"
(91cm-107cm)
14"
(36cm)
19.5"
(50cm)
6.5"
(16.5cm)
X Large 46"-50"
(117cm-127cm)
40”-46”
(102cm-117cm)
17"
(43cm)
22.5"
(57cm)
8"
(20cm)
XX Large 46"-52"
(117cm-132cm)
44"-50"
(112cm-127cm)
18"
(46cm)
24"
(61cm)
8.25"
(21cm)

Adult and Pediatric Halo Ring Sizes

Model XX Small X Small Small Medium Large X Large XX Large
1211-1 14”-17”
(36cm-43cm)
14”-17”
(36cm-43cm)
16”-21”
(41cm-53cm)
21”-24”
(53cm-61cm)
24”-26”
(61cm-66cm)
26”-28”
(66cm-71cm)

1201-1   14”-16”
(36cm-41cm)
16”-19”
(41cm-48cm)
19”-22”
(48cm-56cm)
22”-24”
(56cm-61cm)
24”-26”
(61cm-66cm)
26”& up
(66cm & up)
Pediatric Vest Sizes Height & Weight Xyphoid Circumference Shoulder to Xyphoid Shoulder to Illiac Chest Neck Opening
PED 00   19”-21”
(48cm-53cm)
4 1⁄2”
(11cm)
6 3⁄4”
(17cm)
3 1⁄4”
(8cm)
PED 0   20”-21 1⁄2”
(51cm-55cm)
5 1/8”
(13cm)
7 1⁄2”
(19cm)
3 1⁄2”
(9cm)
PED 1   22”-28 1⁄2”
(56cm-72cm)
6 3⁄4”
(17cm)
9 1⁄2”
(24cm)
4”
(10cm)
PED 2   22”-28 1⁄2”
(56cm-72cm)
7 1⁄4”
(18cm)
10 3⁄4”
(27cm)
4 1⁄4”
(11cm)
PED 3   22”-28 1⁄2”
(56cm-72cm)
8 1⁄2”
(22cm)
12 1⁄4”
(31cm)
4 1⁄2”
(11cm)
PED 4   26 1⁄2”-32 1⁄2”
(48cm-53cm)
8”
(20cm)
11 1⁄2”
(29cm)
4 3⁄4”
(12cm)

*Modification is available
